Part Number: ETI0001-2205A3
Rugged Mil Spec®
5000 VA UPS
120 VAC Power Source with
3-Phase Input and 1-Phase Output
Rugged Mil Spec Rack Mount 5.0 kVA UPS
w/ 3-Phase Input, 1-Phase Output, Remote Battleshort,
and Remote Emergency Power Off
Intelligent SNMP/HTTP Interface

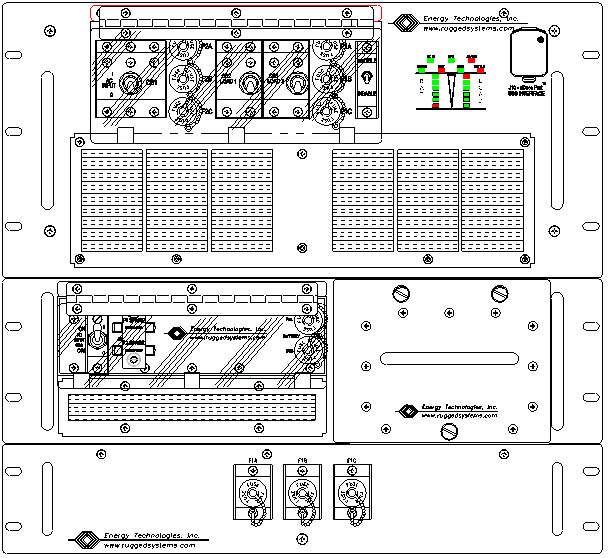

P/N: ETI0001-2205A3 Rugged Mil Spec UPS Standard Front Panel Layout
with 3U and 2U Battery Shown in Rack Mount Configuration
P/N: ETI0001-2205A3

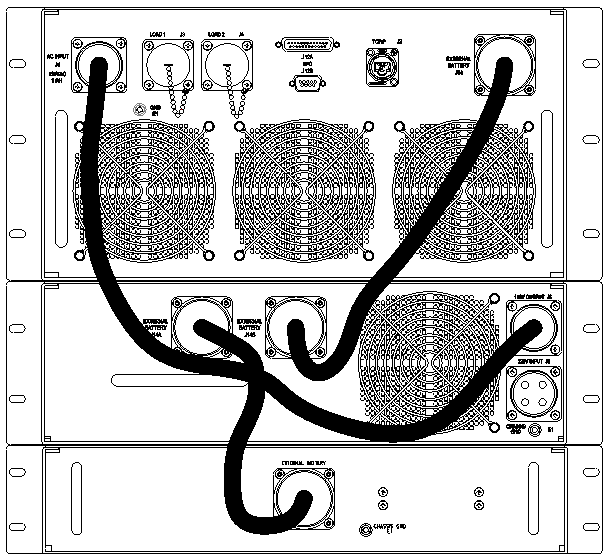

Rugged Mil Spec UPS Standard Rear Panel Layout
with 3U and 2U Battery Shown in Rack Mount Configuration
The field proven Military Power® UPS line is ideally suited for military,
industrial, computer and telecommunications applications requiring high reliability, rugged
construction, compact size and light weight design. These units are equally
suited for use in shipboard, airborne, vehicular, field deployed or fixed
locations with controlled or uncontrolled environments. The ETI0001-2205A3 is being used as the
power source for Radar Systems because of the stringent performance
and reliability requirements.
The heavy-duty UPS and Battery chasses have rounded metal corners and rugged handles front
and rear, aiding in safe handling. Internally, all major components are well
secured and electrically insulated to prevent damage due to shock and
vibration. The internal intelligent thermal sensors provide monitoring of unit temperatures, with both local and remote Battleshort override capability of thermal shutdown for emergency scenarios. Battleshort can be engaged via a remote contact input or via a software command. When in Battleshort, an audible alarm is sounded and an indicator is lit. The high intensity audible alarm can be heard in high noise environments and includes an audible enable/disable switch.
The internal shielded
input transformer provides galvanic isolation with provisions for nominal 208 VAC, 3-phase input
voltages. Special EMI/RFI filters and input
power factor correction minimize both input current and harmonics. The input
circuit breaker and the isolation transformer
provide an isolated source for all installations including shipboard systems or
overseas locations where phase references and grounding are not consistent. 50
or 400 hertz outputs are available as an option.
The unit can also operate as a frequency converter, taking 46-70 hertz input and
converting it to clean, uninterruptible 60 hertz power.
The LED arrays keep the operator
informed as to the unit's status including load and battery levels. The
high intensity audible alarm can be heard in high noise environments. All
controls and protective devices are brought to the front and rear panels with critical
switches having finger guards. The front panel also provides easy access to both the AC Input and Battery Input fuses. Coupled with the onboard spare fuses, MTTR is reduced to less than 15 minutes. Further, all front panel devices are recessed to
prevent damage or accidental operation. The
input circuit breaker and the galvanic isolation transformers
all provide a double pole isolated source for all installations including shipboard systems or
overseas locations where phase references and grounding are not consistent.
The rear panel provides locking connectors for the input
and output power. Removable, washable air filters combined with high capacity
stainless steel ball bearing fans provide added protection in both controlled and hostile
environments. The exhaust air is diverted out the rear vents, with
alternate air flow directions optional. The external battery connector allows the safe and easy addition of
the standard or extra battery modules without having to shut the unit down.
The batteries are maintenance free with immobilized electrolyte and are
constructed of flame retardant materials. For more information, see the
