Part Number: ETI0001-1488A1
Rugged Mil Spec® 5000 VA UPS
120 VAC Power Source with
3-Phase Input and 1-Phase Output
Rackmount UPS and Intelligent
Power Distribution Unit Combination
Military Power®
Mil Spec N5
Configuration
5000 VA Rugged Rack Mount
Isolated AC and DC UPS w/ Integrated
8 Circuit, 2 Pole, Intelligent, Solidstate Power Distribution Unit
Intelligent SNMP/HTTP Interface

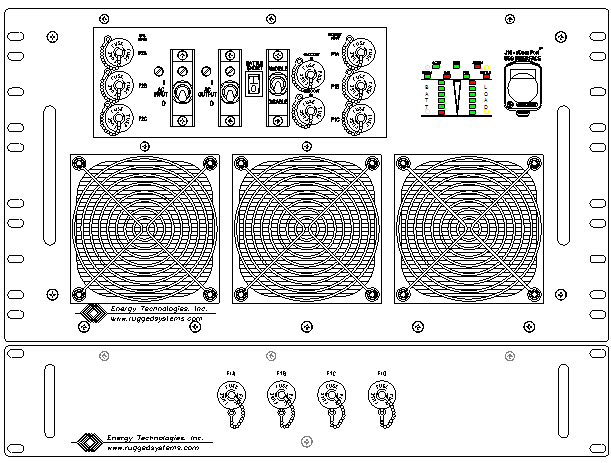

P/N: ETI0001-1488A1 Rugged Mil Spec UPS and
PDU Standard Front
Panel Layout

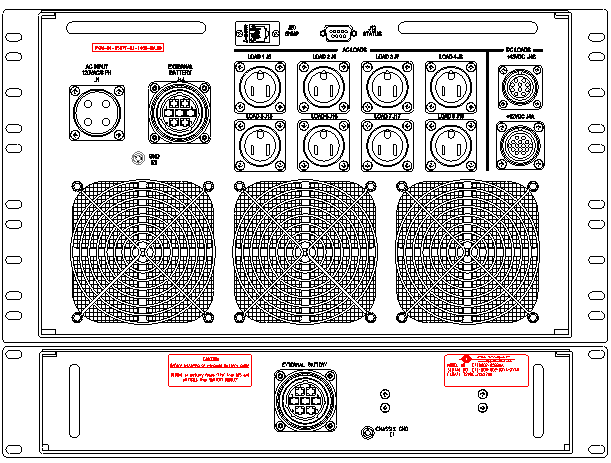

P/N: ETI0001-1488A1 Rugged Mil Spec UPS and
PDU Standard Rear
Panel Layout
The field proven Military Power® UPS line is ideally suited for military,
industrial, computer and telecommunications applications requiring high reliability, rugged construction, compact size and light weight design.
These units are equally suited for use in shipboard, airborne, vehicular, field
deployed or fixed locations with controlled or uncontrolled environments. The
ETI0001-1488A1 was specifically designed for systems
requiring high density power with 3-phase input.
The ETI0001-1488A1 does not require a separate PDU since the PDU
functions are already integrated into the UPS module. This saves rack space,
cabling and expense while improving overall reliability.
The heavy-duty chassis occupies only 6U (10.5”) of
rack space for the electronics module and 2U (3.5”) for the battery module. The
rounded metal corners and rugged handles, both front and rear, aid in safe
handling. Internally, all major components are well secured and electrically insulated to prevent
damage due to shock and vibration in any axis. These units can be mounted
horizontally or vertically. Optional heavy-duty rack slides provide
easy installation and removal of the unit with full extension.
The internal shielded
input transformer provides galvanic isolation with provisions for nominal 208 VAC, 3-phase input
voltages. Special EMI/RFI filters and input
power factor correction minimize both input current and harmonics. The input
circuit breaker and the isolation transformer
provide an isolated source for all installations including shipboard systems or
overseas locations where phase references and grounding are not consistent. 50
or 400 hertz outputs are available as an option.
The LED arrays keep the operator informed as to the unit's status including
load and battery levels. The high intensity audible alarm can be heard in high
noise environments and includes an audible disable switch. All controls and
protective devices are brought to the front and rear panels with critical
switches or circuit breakers having finger guards. Further, all front panel
devices are recessed to prevent damage or accidental operation. The internal
intelligent PDU allows control of the individual output circuits incorporating
thermal and interlock interfaces for additional control and safety.
The rear panel provides locking MS threaded metal shell
connectors for the input and output power with various optional configurations
available. The Status connector provides an
interface with optional computer software providing
loss of AC and low battery status as well as remote shut down capability.
This
unit draws air through the front air filter and exhausts out the rear vent into the rack.
This allows the unit to be used in negative or neutral pressure racks. For
positive pressure racks, rear to front or rear to side versions are available. The removable and washable metal screen air filters and high capacity
stainless steel ball bearing fans provide
added protection in both controlled and hostile environments.
The ETI0001-1488A1
has the added benefit of having a
field replaceable battery via separate rackmount battery modules. The batteries are maintenance free with immobilized electrolyte and are
constructed of flame retardant materials. For more information, see the
