Part Number: ETI0001-1456
Rugged Mil Spec® 4000 VA Integrated
Rackmount UPS and Intelligent
Power Distribution Unit Combination
P/N: ETI0001-1456,
Elbit / Ingalls Shipbuilding Standard for Venezuelan Navy
Military Power® Isolated Mil Spec UPS, 4000 VA Rugged Rack Mount UPS
w/ PFC and Integrated 6 Circuit, Intelligent, Solidstate Power Distribution Unit
P/N: ETI0001-1456 Rugged Mil Spec UPS and
PDU Standard Front
Panel Layout w/ 3U Battery Module. Shown w/ left flange in
rackmount position, right in base mount position
P/N:

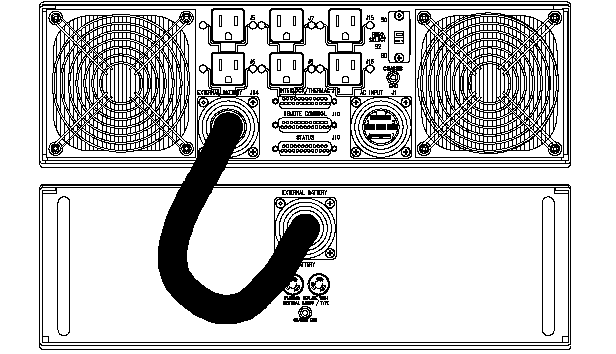

ETI0001-1456 Rugged Mil Spec UPS and PDU Standard Rear
Panel Layout w/ 3U Battery Module. Shown with mounting flanges
removed
The field proven Military Power® UPS line is ideally suited for military,
industrial, computer and telecommunications applications requiring high reliability, rugged construction, compact size and light weight design.
These units are equally suited for use in shipboard, airborne, vehicular, field
deployed or fixed locations with controlled or uncontrolled environments. The ETI0001-1456 was specifically designed for US Navy rack systems
requiring higher power requirements. In typical installations, the 3U
electronics module is mounted in the upper section of the rack near eye level.
The ETI0001-1456 does not require a separate PDU since the PDU
functions are already integrated into the UPS module. This saves rack space,
cabling and expense while improving overall reliability. The heavier 3U battery
module is then mounted in the bottom of the rack for lowering the center of
gravity of the rack. A 12 foot heavy duty shielded cable is provided to connect
the two modules.
Both chassis have rounded
metal corners and rugged handles, both front and rear, aiding in safe handling. Internally, all major components are well secured and electrically insulated to prevent
damage due to shock and vibration in any axis. These units can be mounted
horizontally or vertically.
The internal shielded
input transformer provides galvanic isolation with provisions for domestic (115
VAC, CONUS)
and optional autoranging international input voltages (85-270 VAC,
OCONUS).
The
unit also operates as a frequency converter, taking 46-70 hertz input and
converting it to 60 hertz power.
Special EMI/RFI filters and input
power factor correction minimize both input current and harmonics. The input
circuit breaker and the galvanic isolation transformer
all provide a double pole isolated source for all installations including shipboard systems or
overseas locations where phase references and grounding are not consistent.
The LED arrays keep the operator informed as to
the unit's status including load and battery levels. The high intensity audible alarm can
be heard in high noise environments.
All controls and protective devices are brought to front and rear panels with critical
switches having finger guards. Further, all front panel devices are recessed to prevent
damage or accidental operation. The internal intelligent PDU allows control of
the individual output circuits incorporating thermal and interlock interfaces
for additional control and safety, plus Battleshort override. The display and
control panel can be mounted remotely in the rack at eye level, or on the keyboard console,
or on the unit front panel with only a logic level cable connection.
The rear panel provides locking
connectors for the input and output power with various optional configurations
available. The output connectors are standard
NEMA 5-15R with unique cable restraints. This reverse air flow version draws air through the front and exhausts out the rear
vents into the rack. A removable and washable intake air filter and high capacity
stainless steel ball
bearing fans provide added protection in both controlled and hostile environments.
The external battery connector allows the safe and easy addition of
the standard or extra battery modules without having to shut the unit down.
The batteries are maintenance free with immobilized electrolyte and are
constructed of flame retardant materials. For more information, see the
