Part Number: ETI0001-1230AA
NSN: 6130-01-553-1436
Rugged Mil Spec® 1500 VA
Rackmount Tactical UPS
US Navy AN/SQQ-89A Integrated Surface Ship ASW
Combat System
Military Power® Isolated
Mil Spec 1500 VA UPS
Rugged Rack Mount, Modular Power System
P/N: ETI0001-1230AA Rugged Mil Spec UPS Standard Front Panel Layout
NSN: 6130-01-553-1436

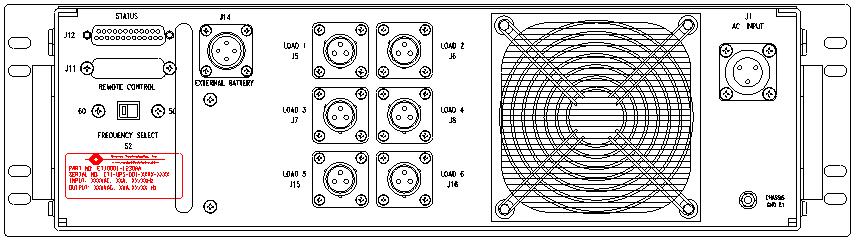

P/N: ETI0001-1230AA Rugged Mil Spec UPS Standard Rear Panel
Layout
The field proven Military Power® UPS line is ideally suited for military,
industrial, computer and telecommunications applications requiring high reliability, rugged
construction, compact size and light weight design. These units are equally
suited for use in shipboard, airborne, vehicular, field deployed or fixed
locations with controlled or uncontrolled environments.
The ETI0001-1230AA is being used by
the US Navy as the
power source for critical ship systems because of the stringent performance
and reliability requirements.
The heavy-duty chassis, occupying only 5.25”
(3U) by 23.5” depth, has rounded metal corners and rugged handles front
and rear, aiding in safe handling. Internally, all major components are well
secured and electrically insulated to prevent damage due to shock and
vibration.
The internal shielded
input transformer provides galvanic isolation with provisions for domestic (115
VAC, CONUS) and optionally for international (230 VAC, OCONUS) input
voltages. The
input switch and the galvanic isolation transformer
all provide a double pole isolated source for all installations including shipboard systems or
overseas locations where phase references and grounding are not consistent. For
field deployed scenarios, the Cold Start feature allows the unit to run from its
battery module before external AC is available. Special
EMI/RFI filters
and input power factor correction minimize both input current and harmonics.
The unit also operates as a frequency converter, taking 46-70 hertz input and
converting it to clean, uninterruptible 60 hertz power. A frequency selection switch
is available for those sites requiring 50 hertz output instead of the standard 60 hertz.
Optionally, 46-440 hertz input as well as 400 hertz
output are available.
The LED arrays keep the operator
informed as to the unit's status including load and battery levels. The
high intensity audible alarm can be heard in high noise environments. All
controls and protective devices are brought to the front and rear panels with critical
switches having finger guards. Further, all front panel devices are recessed to
prevent damage or accidental operation. The
input switch and the galvanic isolation transformer
all provide a double pole isolated source for all installations including shipboard systems or
overseas locations where phase references and grounding are not consistent.
The rear panel provides locking connectors for the input
and output power. Removable and washable air filters and a high capacity
stainless steel ball
bearing fan provide added protection in both controlled and hostile
environments. The exhaust air is diverted out the front vents, with
alternate air flow directions optional. The external battery connector allows the safe and easy addition of
extra battery modules without having to shut the unit down.
The batteries are maintenance free with immobilized electrolyte and are
constructed of flame retardant materials. For more information, see the
